Tag Archives: 13 Pin Plug

NEC Show Roundup – it’s all technical…

28 Tuesday Feb 2017

Posted by Simon Barlow in Caravan Electrics, Electrical, General, Maintenance, Modifications, Technical, tow vehicle, VW Amarok

≈ 9 Comments

Tags

13 Pin Plug, Caravan Electrics, Caravanning, Caravans, Maintenance, Modifications, Sterling Power, Travel Trailer, Travel Trailers

This is really a follow-up to my previous post – Smart Alternators: how they affect Caravans and Motorhomes….

While at the NEC show one of my big tasks was to get a number of technical questions answered by the industry players. One of my first stops was to Westfalia and to meet up with Rick Sykes and his colleague on the Westfalia stand. Rick is the national training manager for Westfalia and I was able to get answers to a number of questions that you have asked me and I’d not been able to answer fully. Continue reading →

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...

Upgrading pre September 1998 Caravans to 13 Pin

06 Saturday Jun 2015

Posted by Simon Barlow in Caravan Electrics, Electrical, Help Guides, Maintenance, Modifications, Technical

≈ 2 Comments

Tags

13 Pin Plug, Caravan Electrics, Maintenance, Modifications, Towing

One of Caravan Chronicles long time readers and supporters, Colin “Snowy” Snowden, has sent me an excellent article he has written covering all aspects of upgrading pre September 1998 UK caravans to the 13 pin Euro Plug.

It’s very comprehensive article and goes into detail about the various problems and colour codes that were used and cover some of the changes that are required, habitation relays and details the steps required to actually do the upgrade with steps on fault finding.

If you have a pre September 1998 caravan and are thinking of replacing the original 12N/12S wiring with a 13 Pin plug, it’s an essential read.

The document can be downloaded and viewed here: Upgrading to 13 Pin

Colin has included contact details in the article, but if you have any questions that the answers might be helpful to others as well, you could also post them in the comments section below and Colin will be able to answer them.

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...

“Why do my sidelights flash when I indicate?”…

20 Wednesday Aug 2014

Posted by Simon Barlow in Caravan Electrical Fault Finding, Caravan Electrics, Caravan Servicing, Electrical, Maintenance, Technical, Tips

≈ 4 Comments

Tags

13 Pin Plug, Caravan, Caravan Electrics, earth fault, Maintenance, rear lights, Road Lights, side lights, Travel Trailer

That is one of the most common questions that I am asked about road light problems with caravan’s and trailers. Others are::

“Why do my side lights come on when I brake?”

“When I turn my side lights on why do the indicators glow dimly?”

“When I put my side lights on why do my reversing lights come on?”

“When I brake why do all my rear lights come on?”

The answer is fairly simple, and a lot of people will tell you “It’s an earth fault” So often said simply because they have heard someone else say it but really they don’t understand how it can be an earth fault. Trying to find a fault even if you know what it is can be frustrating if you don’t know a bit of theory behind it, but I’ll try to give you an insight into what’s going on. Lets have a look at a basic wiring diagram for the caravan or trailer road lights and their connections.

The term ground and earth are basically the same thing but the ‘earth’ refers to the cable and the ground is the termination of the earth cable to the car in this case.

Road Light Earth Problems-01

The drawing above shows the basic road light wiring. (Click on the diagram to enlarge it) You can follow each circuit through from the tow vehicle through the 13 pin connector to the rear lights of the caravan or trailer and then back through the return path (earth) to the 13 pin connector and back to the vehicle ground as shown in the diagram.

What happens when you operate the right hand indicator? Electricity flows down the green wire and lights up the right hand indicator on the vehicle and continues down the green wire through the 13 pin connector to the caravan or trailer right hand indicator. It then returns through the black earth wire to vehicle ground.

So what happens if we have an earth fault?

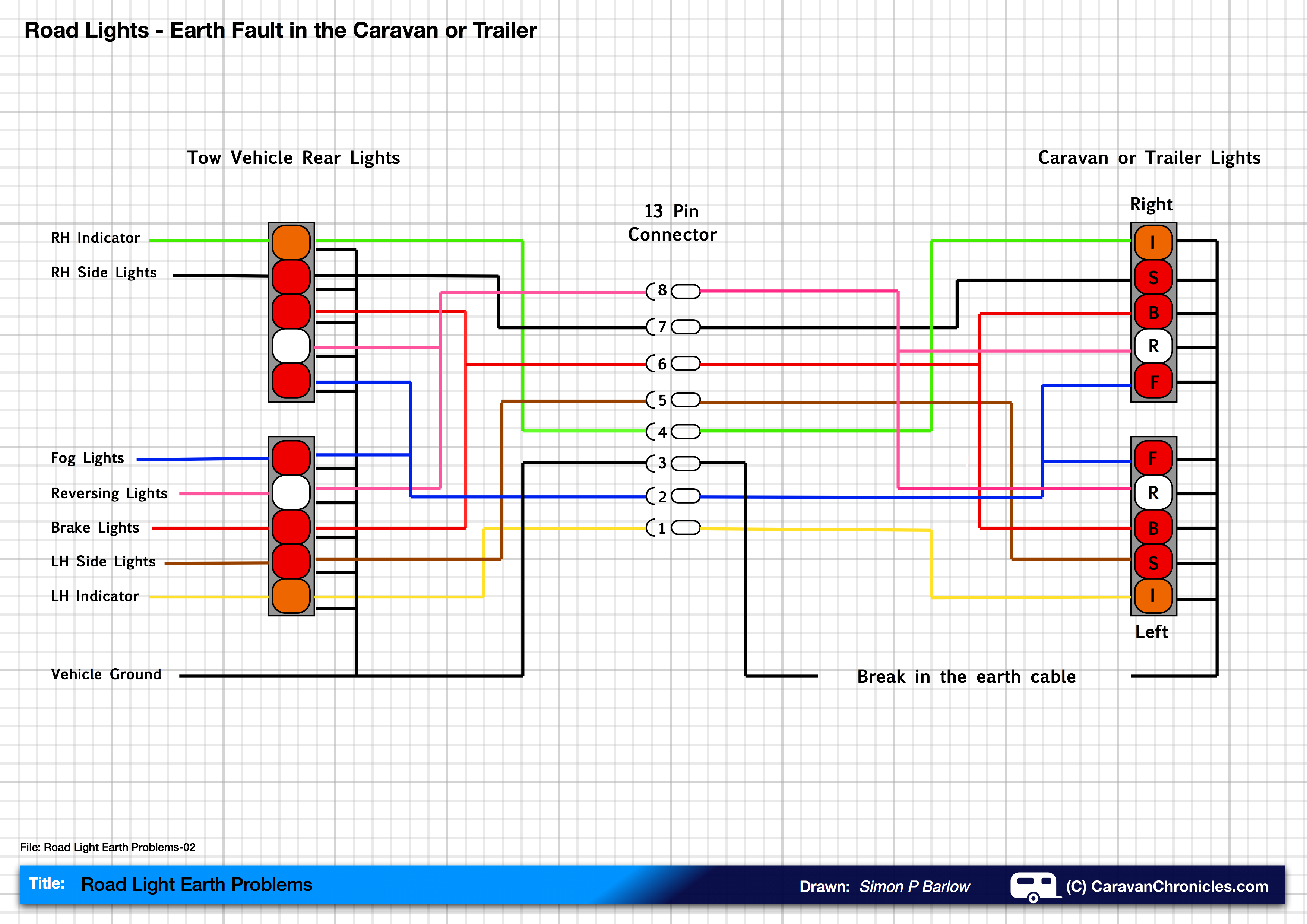

Here is the same drawing only this time with an earth fault.

Road Light Earth Problems-02

Now the return path for the lighting circuits is broken, but using the indicators now also flashes the rear side lights. So what’s happening?

In the diagram below we have again turned on our right indicator, electricity flows down the green wire (shown a bit thicker this time) to the rear caravan or trailer indicator. It flows through the bulb and should then follow the black line to the vehicle ground. But it can’t as there is a break in the wiring.

Road Light Earth Problems-03

Electricity really does like to go home!

As the return path through the black wire is effectively ‘blocked’ because of the break the electric current will try to find another way home. The only path it can find is back through another circuit, in this case  the right hand side light circuit all the way back to the tow vehicle and through the bulb in the rear light to earth, as illustrated below.

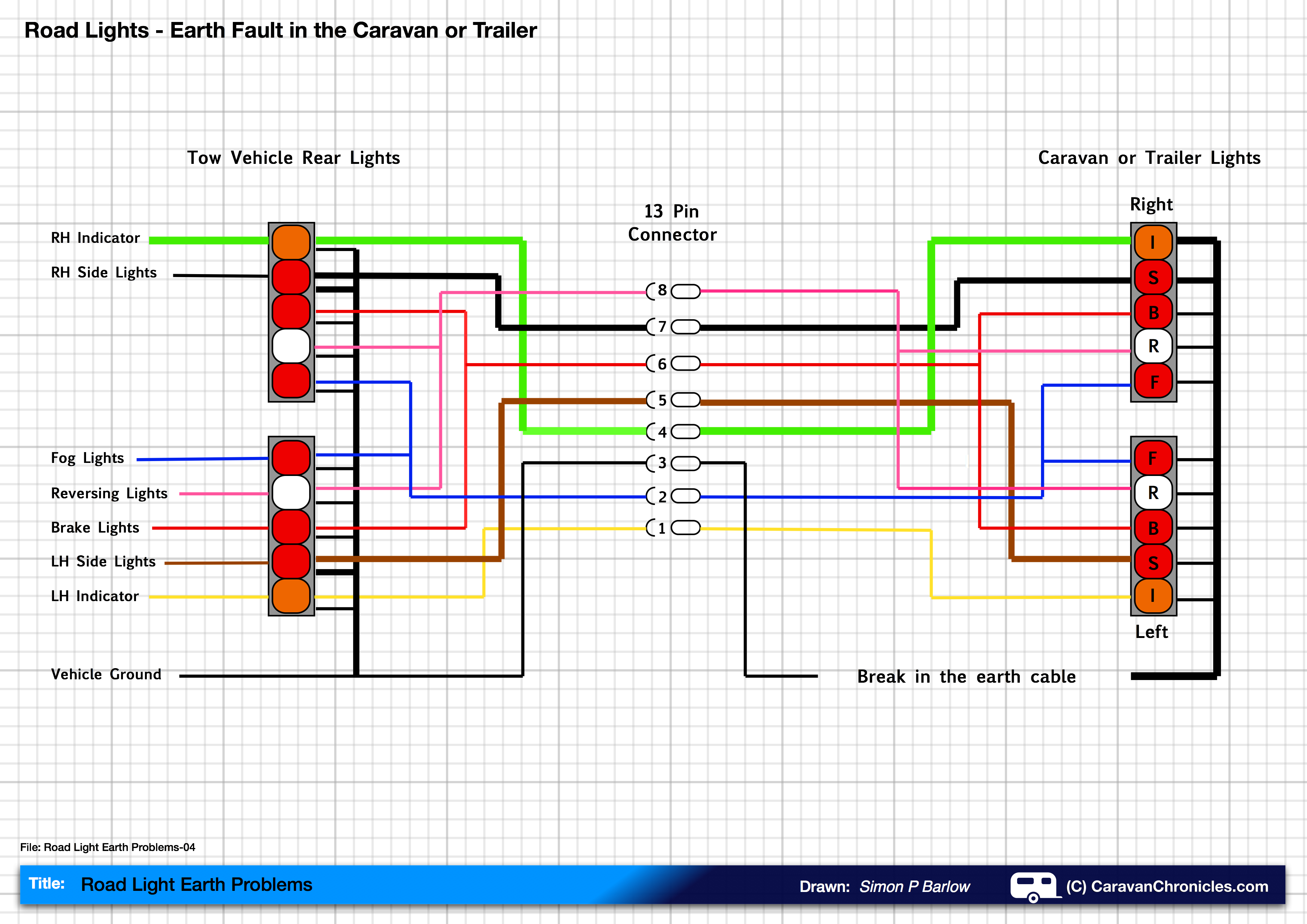

Road Light Earth Problems-04

So as your indicator flashes, it is also powering the side light on the caravan or trailer and the rear side light of the tow vehicle. Electricity will nearly always find a way home!

But it’s not quite that simple. In the diagram above I have shown one return path (the heavy black lines) but in fact the return path will be through all the light bulb circuits that are not powered. As there are multiple paths back to earth and only one path or circuit powering the indicator bulb, the indicator bulb will be at full brightness but the other bulbs may only be dim.

If you now turn on the side lights and indicate right, the current from the side lights and the indicator will follow the path of least resistance through the other lights that aren’t lit back to the tow vehicle earth.

So the original question of “Why do my side lights flash when I indicate” might now be expanded to “Why do my side lights flash when I indicate? It can’t be because there is anything wrong with the side lights because they work normally”

We now know that the side lights only appear to work correctly.

The diagrams all show a common earth from both sets of rear lights on the caravan or trailer. Sometimes for convenience the manufacturer will run a separate earth for each light cluster, so all the wires for the left hand lights run down the left hand side and all the wires for the right down the right hand side. The common point is usually a small junction box at the front of the caravan or trailer.

If we have similar symptoms as before but only affecting one side (the RH indicator is OK, but the LH Indicator also flashes the LH side light and LH brake light) then the break in the earth cable will be only on the left hand side earth wiring.

So now you know the theory behind earth faults on caravan or trailer road lights. If you want to do a bit more reading you might find these two articles interesting:

Caravan Road Lights – Basic Fault Finding – a simple fault finding guide using a multimeter to check your caravan or trailer road lights.

Caravan Road Lights – Tracing A Fault – step by step guide to tracing faults in your caravan or trailer road lights.

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...

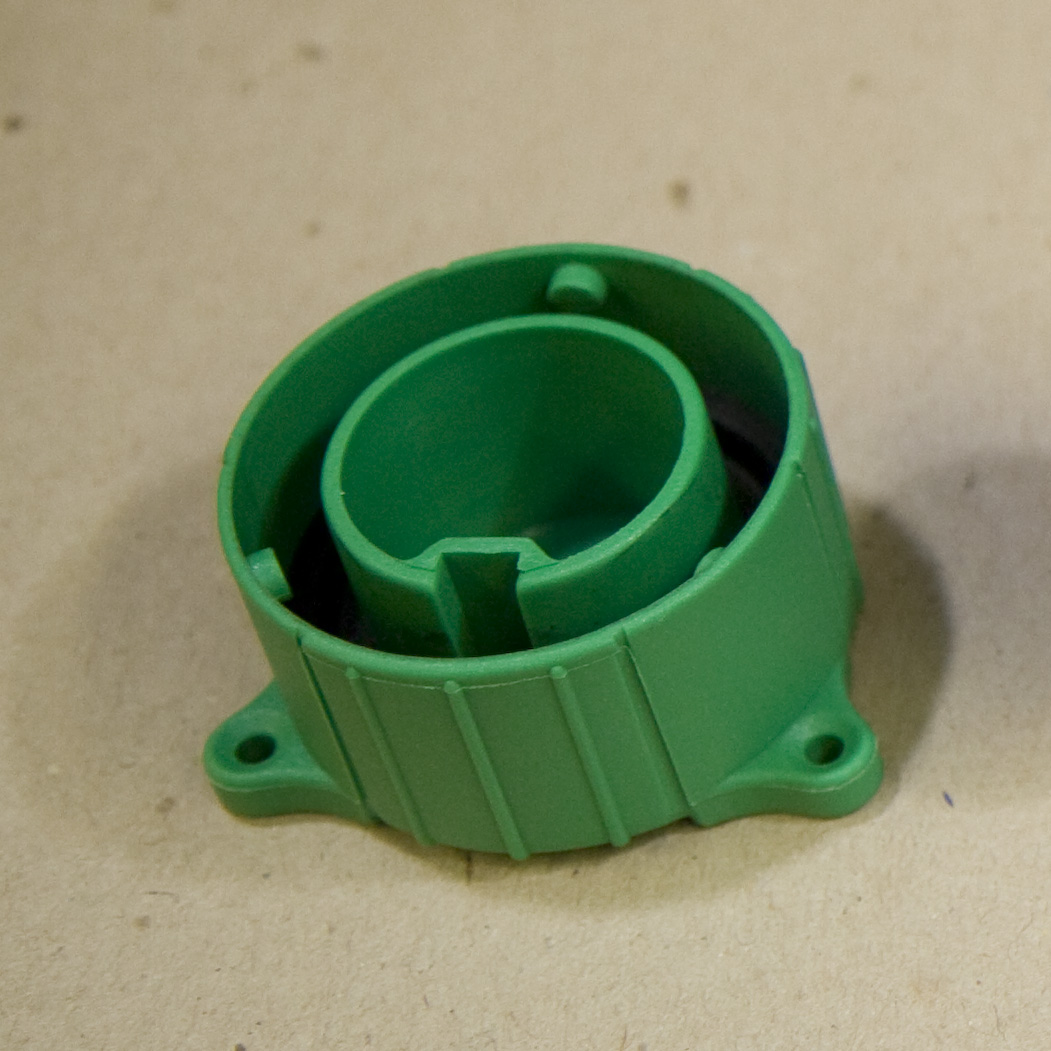

13 Pin Plug… the green cap arrives!

23 Monday Apr 2012

Posted by Simon Barlow in Help Guides, Maintenance

≈ 6 Comments

Tags

13 Pin Plug, Capus UK Ltd, Caravan Electrics, Menber, Pennine Leisure Supplies, Sargent Electrical, The 13 Pin Plug Puzzle, Towing

You may recall that in a previous post I said I had emailed a couple of distributors (Maypole & Grove Products) about the possibility of selling just the green caps, and I heard absolutely nothing back from them. Well, my next plan of attack was to contact Menber directly. Well that led me via Menber’s web site to a company called Capus (UK) Ltd who are the importers of Menber products into the UK. So yesterday (Sunday) I pinged off an email to them. Continue reading →

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...

Swift factory visit….

31 Saturday Mar 2012

Posted by Simon Barlow in Events, General, Travelling in the UK, Trips

≈ 5 Comments

Tags

13 Pin Plug, Ash Dhir, Caravanning, Caravans, Sterling Caravans, Swift Factory, Swift Group, Swift Talk, Touring, transportation, Travel Trailers

We had been invited on a visit to the Swift factory by Ash Dhir via the Swift Talk forum. We were staying at Bridlington, so it was about a 50 minute drive south from Bridlington to Cottingham where the factory is located. Thursday was going to be another warm sunny day but the forecast was for the weather to break for the weekend. We had a lazy morning, deciding not to do much except potter about the camp site. I replied to some emails and a couple of odd jobs on the van… the emptying or refilling of the various containers that were  connected by umbilicals to the caravan and the general wander round with a micro-fibre cloth in one had and a sprayer containing One Dry in the other attacking anything that looked like a dirt mark, deceased bug or a spot where a fly decided to commit suicide on the trip over. Sandwiches prepared…. with beef from the farm shop up the road we set off for Cottingham about 12:30. Continue reading →

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...

Hey… someone listened!

23 Friday Mar 2012

Posted by Simon Barlow in Blog updates, General, Help Guides, LPG Refilling Info, Web sites

≈ Leave a comment

Tags

13 Pin Plug, Factory Visit, Green Cap, Safefill, Swift Group

Well, I think they did! OK what am I on about? Well, if you have read through my ramblings about the Safefill refillable gas cylinder, one of the comments I had at towards the end was the fact that I had to create my own POI file for my GPS from the map of Safefill accredited filling stations and dealers on their website. I thought that Safefill should have this on their website to make it a lot easier for people that are not quite as savvy on creating POI files.

Well, it seems that good customer service still exists from some companies and they have now made it easy to get a POI file for your GPS.

I tried it out and it’s quite easy, click on the “GPS Download” button on the home page or the Refilling page and it directs you to the contact us area where you fill in your contact details click on request GPS download and click on submit…. a few seconds later a link to the download page arrives in your email in box. Continue reading →

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...

Had any 13 pin plug problems?

29 Wednesday Feb 2012

Posted by Simon Barlow in Blog updates, Help Guides

≈ Leave a comment

Tags

13 Pin Plug, Caravan Electrics, Towing

If you struggle to connect your 13 pin plug to your tow car and no one else does, ever wondered why? Well I think I might have one possible cause and it’s fitted to almost every caravan!

A few people have contacted me and asked if I had any answers as to why they keep having problems trying to connect their 13 pin plug every time they hitch up. I always ask them if they store their plug in the little recess mounded into the fibreglass ‘A’ frame fairing, and inevitably the answer almost always comes back as “Yes”. Continue reading →

Share this:

  • Twitter
  • Facebook
  • Tumblr
  • Pocket
  • Pinterest
  • Reddit

Like this:

Like Loading...
